Tecnoplus Series

The Tecnoplus gazebo is produced with high quality materials and is industrially assembled with extreme care and artisan passion. The refined deign of the aluminium frame, the perfect tension of the roof and the side panels, together with easy assembly, make Tecnoplus the most valued gazebo by our customers

Gazebo gazebopiu_li_10 Innovative frame release button

Gazebo gazebopiu_li_10 Exclusive fabric for roof and side panels production

Gazebo gazebopiu_li_10 Vast range of accessories

Gazebo gazebopiu_li_10 Quick assembly

Strong and functional structure


Gazebo gazebopiu_li_10

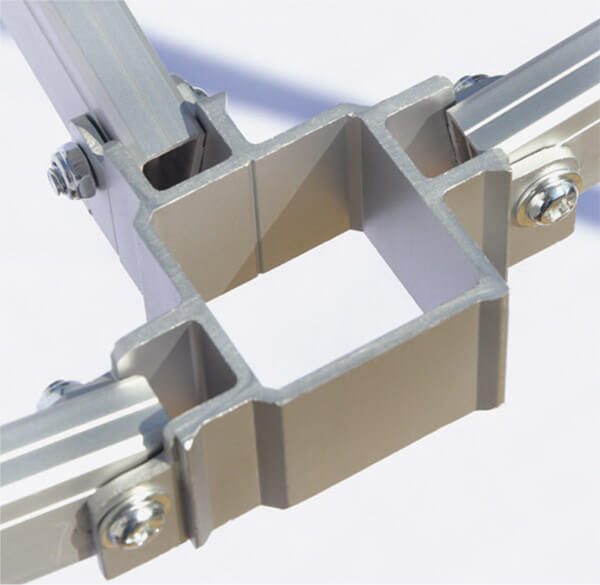

Lower joints, made from a finest aluminium profile, grant the strength and the duration of a top quality frame.

Gazebo gazebopiu_li_10

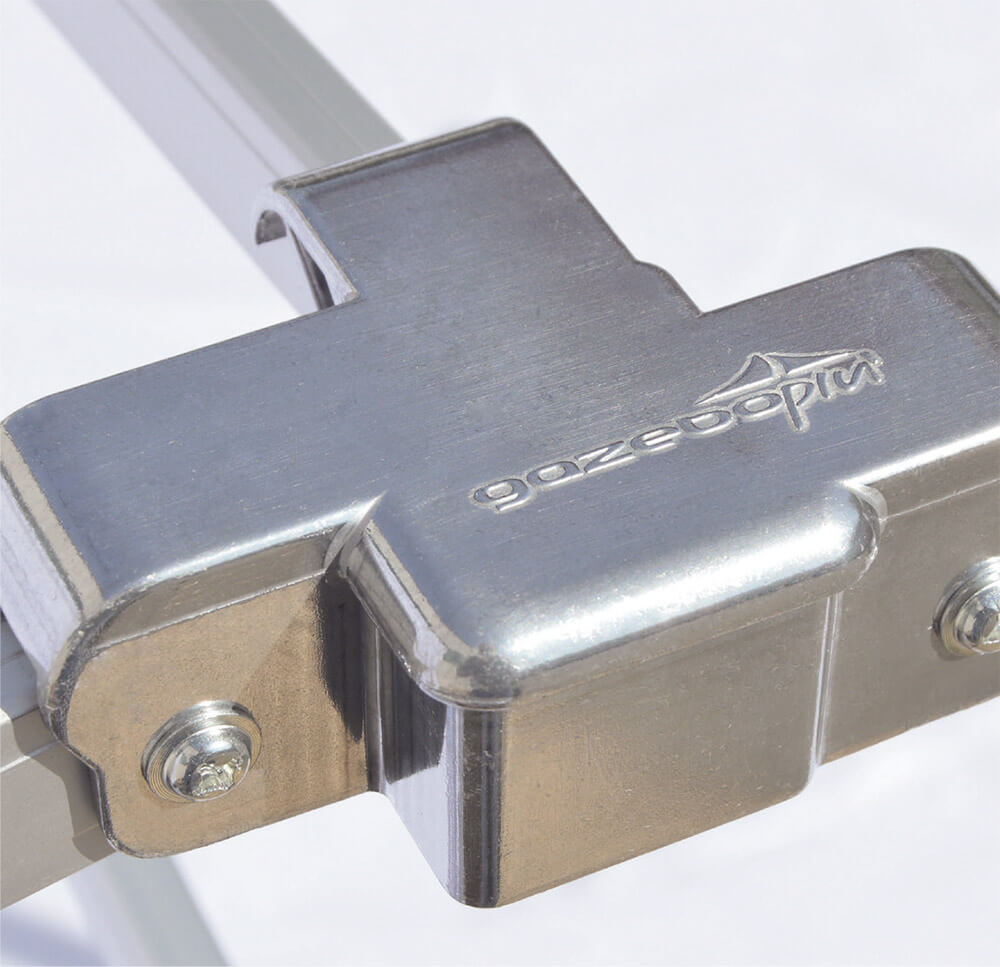

The round design of the upper joints limits the damage of the roof in case of rubbing, when setting it up or packing it.

Gazebo gazebopiu_li_10

The frame is wholly manufactured from high mechanical resistant anodized aluminium.

Gazebo gazebopiu_li_10

The metal pull pin height adjuster favours the best ability for compression.

Gazebo gazebopiu_li_10

The adjustable leg of 42x42 square section and 2 mm thickness, shaped corners, lends this model a style which is modern and up-to-date.

Gazebo gazebopiu_li_10

The pantographs have a 32x16 section and a 2 mm thickness, which makes Tecnoplus the most stable and strongest frame in any situation.

Gazebo gazebopiu_li_10

To assure safety and folding easiness, we have made a patented innovative unlocking system for the frame. The simple act of pushing the green button, allows to unlock, fold the frame and package your gazebo without any risk of injury.

Gazebo gazebopiu_li_10

The sliding frame parts are protected by a plastic insert that eases the sliding linkages.

Gazebo gazebopiu_li_10

The reinforced foot is made of cast aluminum, which guarantees a strong support on any surface.

Gazebo gazebopiu_li_10

The central upper peak pole is equipped with a spring, which regulates the fabric traction for the best roof tension. Moreover, in case of high wind, it helps cushioning the gazebo roof safeguarding it from potential rips

Functional details


Gazebo gazebopiu_li_10

We provide the roofs and the sidewalls in an always available assortment of 13 standard colours

Gazebo gazebopiu_li_10

We can eventually produce specially required colours.

Gazebo gazebopiu_li_10

The reinforced seams are made with a tone-ontone yarn.

Gazebo gazebopiu_li_10

The roofs are equipped with a tone-on-tone 50 mm perimetral velcro strip for the sidewalls connection.

Gazebo gazebopiu_li_10

The tension buckle provided with the Superior roofs makes the surface tight and uniform.

Gazebo gazebopiu_li_10

Next to each corner of the roof, there is a metal ring to which special guys (optional) can be hooked to give the gazebo even more stability.

Side panels available


Side panels are made from 500D Bestex polyester fabric. They connect to the roof using a 50 mm strip of velcro which is sewn horizontally into the top leading edge of the side panel. The vertical velcro strip assures a perfect connection between the side wall and the frame or from one side wall to another. This system creates a secure shelter from weathering.
Gazebo gazebopiu_li_10

BESTEX 500D 240/Gr/sq m fire-resistant polyester fabric

Gazebo gazebopiu_li_10

Wide vertical fixing flaps

Gazebo gazebopiu_li_10

Washable PVC flounce



The range includes:

Gazebo gazebopiu_li_10

Plain side panel: wide customizable surface and a protection for the inside of the gazebo.

Gazebo gazebopiu_li_10

Window side panel: external visibility thanks to an elegant transparent PVC window.

Gazebo gazebopiu_li_10

Door side panel: vertical opening by two zippers. The door can be rolled and fastened by velcro strips.

Gazebo gazebopiu_li_10

Half side panel: the half panel is the perfect solution to provide a formal barrier from unwanted entry without closing the gazebo permitting communication with the public or customers. For a perfect fabric tension, we suggest to complete half walls with a specific cross bar.

Tecnoplus measurements

Measurements (mt) 3x3 4,5x3 6x3 4x4 6x4 8x4
Section leg (mm) 42x42x2 42x42x2 42x42x2 42x42x2 42x42x2 42x42x2
Weight (kg) 34 45 61 42 55 73
Height under valance (cm) 203 203 203 215 215 215
Height maximum (cm) 335 335 335 390 390 390
Height folder (cm) 154 154 154 198 198 198
Package (cm) 37x37x157 37x48x157 37x62x157 37x37x207 37x48x207 37x62x207
